Features

• AEROWINGS and iAUTO-X cooling technology
• Combined ECONAVI and INVERTER technology
• Nanoe-G air purifier & Mild Dry cooling function
• Blue Fin Condenser
• 24-hour Dual On / Off Real Setting Timer
• Demand Response Enabling Device (DRED)
• Self Diagnostic Function
• Odour Removing Function
• Removable Washable Panel
• AERO Slim Design

General

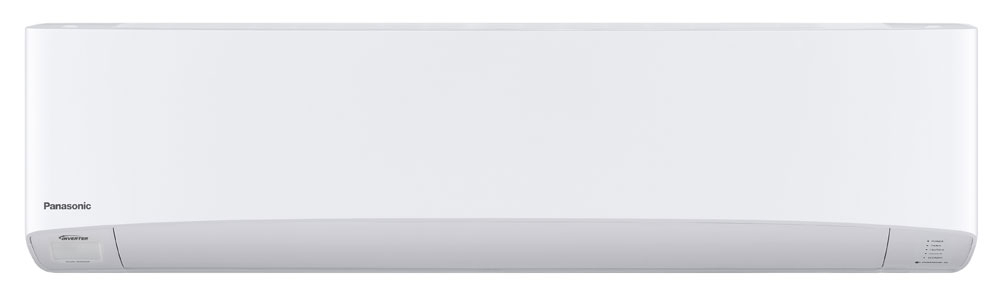

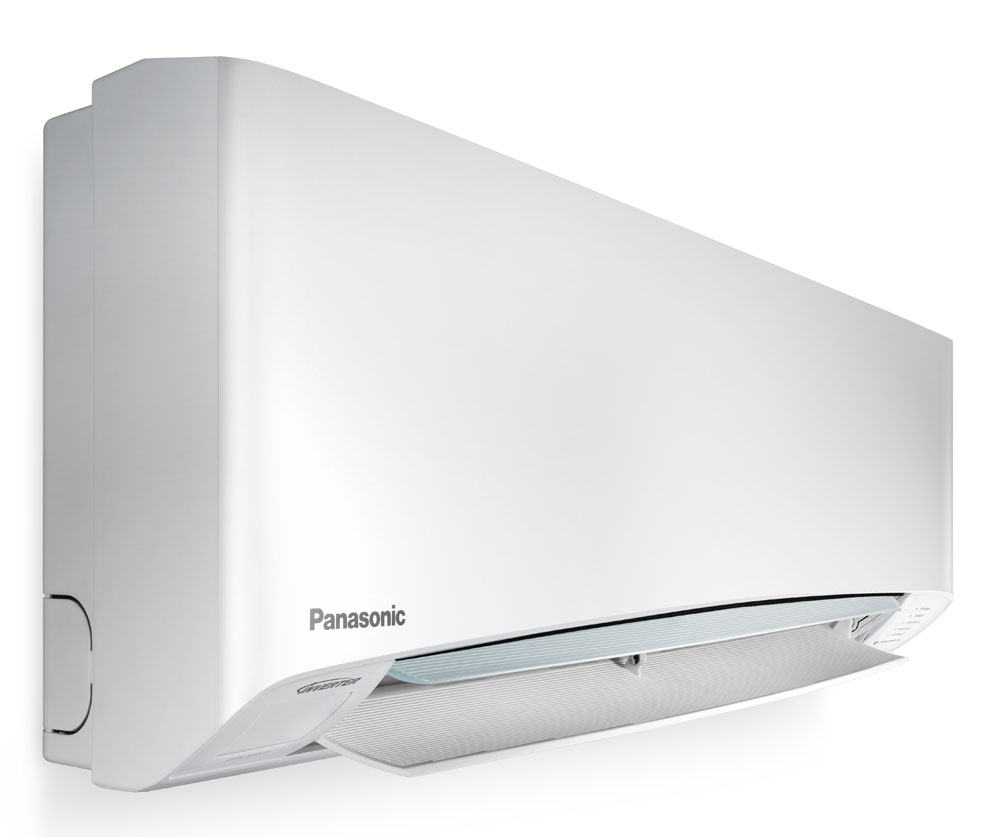

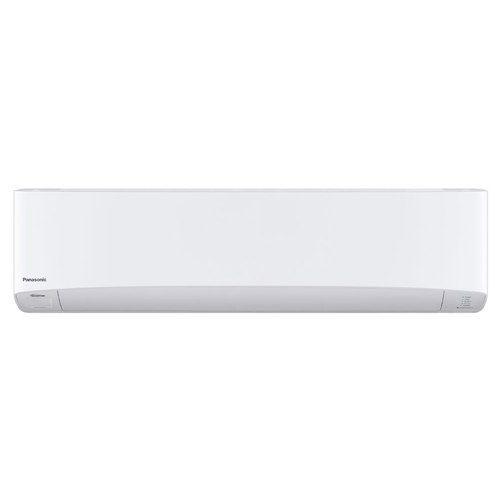

• Indoor Unit: CS-Z80TKR
• Outdoor Unit: CU-Z80TKR
• Function: Cooling + Heating

Performance

• Cooling Capacity Rated Conditions (kW): 8
• Cooling Capacity Range - Min ~ Max (kW): 2.30 ~ 9.00
• EER: 3.45
• Heating Capacity Rated Conditions (kW): 9
• Heating Capacity Range - Min ~ Max (kW): 2.20 ~ 11.00
• COP: 3.73

Specifications

• Star Rating - Cool / Heat: 2.0 / 2.5
• Electrical Voltage (V): 240
• Running Current - Cool / Heat (A): 10.90 / 11.30
• Power Input - Cool / Heat (kW): 2.32 / 2.41
• Sound Pressure Indoor - Cool - Hi / Lo / S-Lo (dB(A)): 51 / 38 / 35
• Sound Pressure Indoor - Heat - Hi / Lo / S-Lo (dB(A)): 50 / 38 / 35
• Sound Pressure Outdoor - Cool - Hi / S-Lo (dB(A)): 55 / 50
• Sound Pressure Outdoor - Heat - Hi / S-Lo (dB(A)): 55 / 50
• Sound Power Outdoor - Cool - Hi / S-Lo (dB): 69 / 64
• Sound Power Outdoor - Heat - Hi / S-Lo (dB): 69 / 64
• Quiet Mode - Indoor (dB): 35
• Quiet Mode - Outdoor (dB): 50
• Dehumidify (L/h): 4.7
• Air Flow - Cool / Heat (L/s): 370 / 370
• Refrigerant Pipe Diameter - Liquid Side / Gas Side (mm): 6.35 / 15.88
• Piping Extension Length Min ~ Max (m): 3 ~ 30
• Pipe Length for Additional Gas (m): 10
• Additional Refrigerant (R32) (g/m): 25
• Power Supply: Outdoor
• Operating Temperature Range - Outdoor - Cooling (°C): 5 ~ 46
• Operating Temperature Range - Outdoor - Heating (°C)=: -15 ~ 24
• Refrigerant Type: R32

Energy Saving

• ECONAVI: Yes
• Inverter Control: Yes
• P-TECh Compressor: Yes

Healthy Air

• nanoe-G Air Purifying System: Yes
• Odour Removing Function: Yes
• Removable Washable Panel: Yes

Comfort

• Aerowings: Yes
• iAUTO-X: Yes
• Mild Dry Cooling: Yes
• Powerful Mode: Yes
• Quiet Mode: Yes
• Soft Dry Operation Mode: Yes
• Fan Mode: Yes
• Remote Airflow Control (All Directions): Yes
• Auto Changeover: Yes
• Hot Start Control: Yes
• Cooling Operation Higher Limit (°C): 46
• Heating Operation Lower Limit (°C): -15

Convenience

• 24-hour Dual On / Off Real Setting Timer: Yes
• Demand Response Enabling Device (DRED): Yes
• 3rd Party Connectivity: Yes
• LCD Wireless Remote Controller: Large

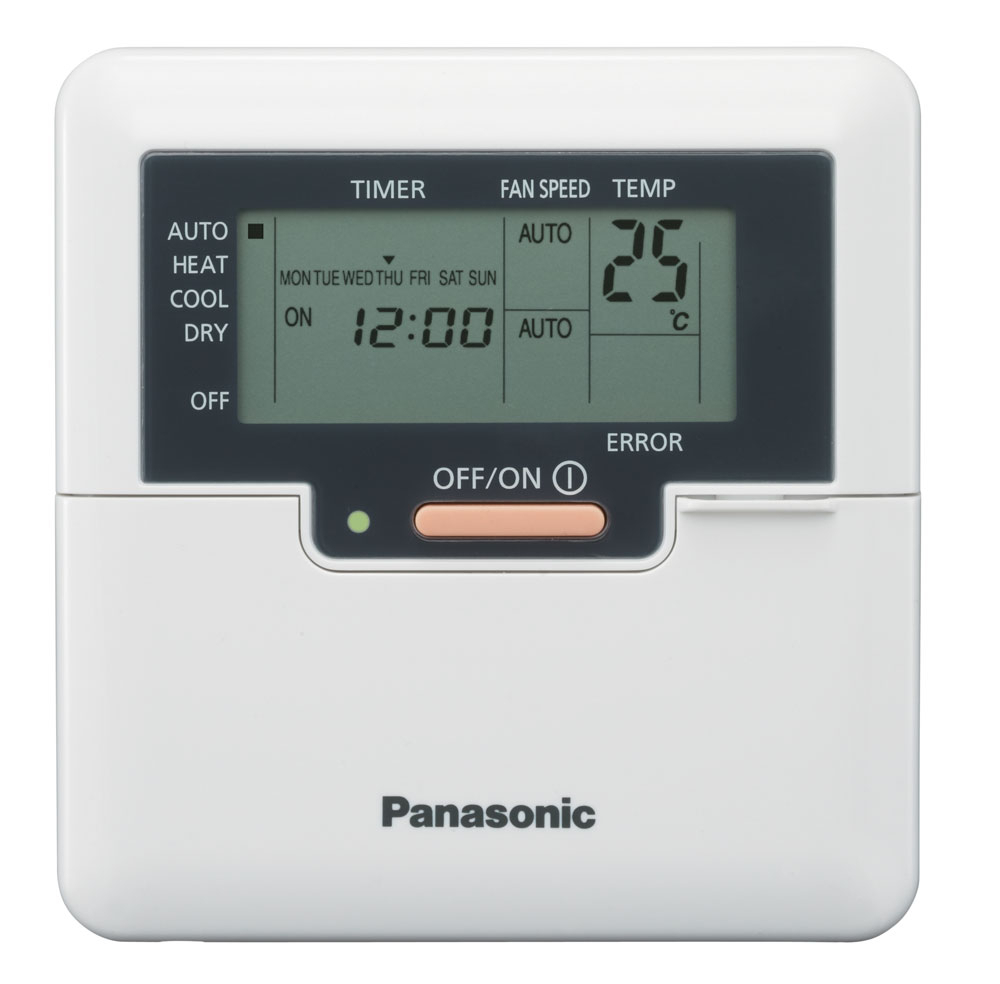

• Wired Remote Controller: Optional

Reliability

• Blue Fin Condenser: Yes
• Random Auto Restart: Yes
• Long Piping (m): 30
• Top-panel Maintenance Access: Yes
• Self Diagnostic Function: Yes

Dimensions

• Indoor (W x H x D)mm = 1120 x 302 x 236mm 13kg
• Outdoor (W x H x D)mm = 875 x 795 x 320mm 60kg

Warranty

• 5 years manufacturer warranty
